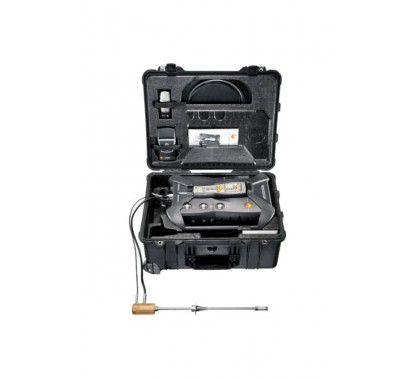

船用testo 350 MARITIME烟气分析仪

技术参数

重量

Approx. 17 kg

尺寸

565 x 455 x 265 mm (case)

操作温度

5 ~ +45 °C

外壳

ABS / ABS-PC 玻璃纤维 10%

可连接的探头

1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x temperature probe; 1 x differential pressure

Product colour

Black

标准

Germanischer Lloyd (DNV GL) Certificate Nippon Kaijik Kyokai (Class NK) certificate according to MARPOL Annex VI and NOx Technical Code 2008

电源

Li ion rechargeable battery; AC mains unit 100 V to 240 V (50 to 60 Hz)

耗电量

max. 40 W

泵流量

1 l / min. with flow monitoring

最大烟气正压

50 mbar

最大烟气负压

-300 mbar

露点计算

0.04 °Ctd; 99 °Ctd

数据传输

IR/IRDA界面; Bluetooth®; USB 接口; data bus; trigger input; 差压; probe input/ probe inputs; DC-voltage input; Mains connection; dilution gas inlet for measurement range extension

存放温度

-20 ~ +50 °C

Type K (NiCr-Ni)

测量范围

-200 ~ +1370 °C

测量精度

±0.4 °C (-100 ~ +200.0 °C)

±1.0 °C (-200 ~ -+1001.0 °C)

±1.0 °C (200 ~ +1370.0 °C)

分辨率

±0.1 °C (-200 ~ +1370.0 °C)

绝压

测量范围

600 ~ 1150 hPa

测量精度

10.0

±10 hPa at -5 ~ 45 °C

O₂测量

测量范围

0 ~ 25 Vol.%

测量精度

According to to MARPOL Annex VI and NOx Technical Code

CO (H₂补偿)

测量范围

0 ~ 3000 ppm

测量精度

According to to MARPOL Annex VI and NOx Technical Code

NO测量

测量范围

0 ~ 3000 ppm

测量精度

According to to MARPOL Annex VI and NOx Technical Code

NO₂测量

测量范围

0 ~ 500 ppm

测量精度

According to to MARPOL Annex VI and NOx Technical Code

SO₂测量

测量范围

0 ~ 3000 ppm

测量精度

According to to MARPOL Annex VI and NOx Technical Code

CO₂测量(红外)

测量范围

0 ~ 40 Vol.%

测量精度

According to to MARPOL Annex VI and NOx Technical Code
