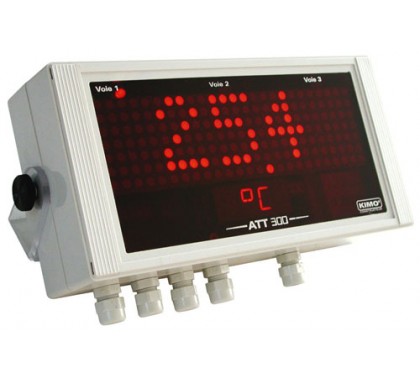

The ATT is a multichannel indicator with a large light-emitting display for an easier reading at several meters distance. Alternating display of 1 to 3 parameters Large display (50 x 190 mm) Multi-directional housing, made of ABS.
ATT 300 can work with any current or voltage input of any transmitter : pressure, humidity, temperature, airflow, air velocity...
Technical data
- Power supply : 24 Vac/Vdc ±10% or 230 Vac ±10%, 50-60Hz
- 3 analogue imputs : 3 x 4-20 mA or 3 x 0-10 V
- 1 RS 232 digital input for KIMO external transmitter (Class 200 and 300)
- 1 RS 485 digital input/output (MODBUS protocol integrated)
- 22 pre-set units and 3 configurable units
- Configuration via software or remote control Housing : IP 63
