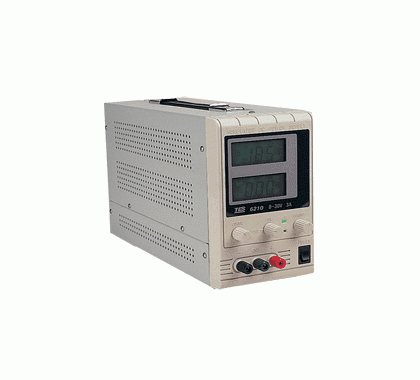

TES-6210数字式电源供应器
|
| 特点： |
 |
|
|
| 规格： |
|
|
线电压调整
|
< =0.02% + 3mV |
|
负载电压调整
|
< =0.02% + 3mV |
|
回复时间
|
< =100ms Typical |
|
涟波电压
|
< =2mVrms |
|
温度系数
|
＜ =300PPM/℃ (0℃ to 40℃) |
|
|
Adjustable Current Limits
|
0 to 3A |
|
线电流调整
|
< =0.2% + 3mA |
|
负载电流调整
|
< =0.2% + 3mA |
|
涟波
|
＜ =3mA |
|
|
电源
|
110/230VAC +-10%, 50/60Hz |
|
消耗功率
|
150W |
|
操作及储存温湿度
|
0 ℃ to 40 ℃ (32 ℉ to 104 ℉ )
-10 ℃ to 70 ℃ (14 ℉ to 158 ℉ ) |
|
尺寸
|
190mm x 115mm x 332mm (H x W x D) |
|
重量
|
8kgs |
|
Power Cord Plug
|
Type
Please describe in your order form.
|
|
|
|
|
