遗漏模式可全量程（ppm/LEL/%Volime）检测可燃性气体,并可自动调整，可视可听可感知的报警系统，操作简单，可一键式操作，并可对一氧化碳进行检测 密闭空间检测模式可检测可燃性气体的泄露，并附高敏感的报警系统，数据下载、最大/最小检测值显示 Barhole 模式检测地下气体的泄露，再此模式下，检测到的可燃气体自动以%Volume显示检测结果 一氧化碳检测模式直接显示PPM，装入氧气传感器时即可对氧气进行检测 清除模式可以测量室内空气中的甲烷含量 嗅探器模式，通过半导体探针快速的检测甲烷遗漏量，可视指示器能够正确指出探针在管道的位置 压力密封模式 通过背面的传感器检测.
技术参数：
|

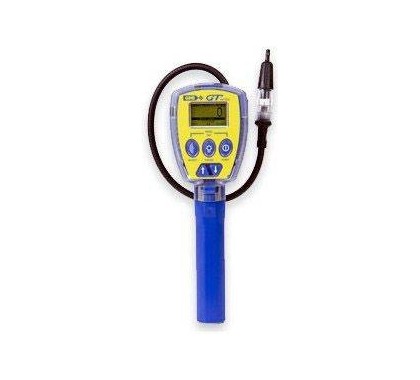

GT 40 TECHNICAL SPECIFICATIONS 40 TECHNICAL SPECIFICATIONS
|
|
Size: 11.4 x 3.7 x 1.7 in / 290 x 95 x 43 mm
|
|
Weight: 1.7 lbs / .78 kg with probe and batteries
|
|
Temp: 4ºF-104ºF/-20ºC to +40ºC
|
|
Humidity: 0-98% non condensing
|
|
Alarms: High visibility LEDs on both sides of instrument
85 db audible alarm
All alarms user programmable via password protected menu
|
|
Battery: 3 C batteries –LR14 alkaline or rechargeable
|
|
Battery Life: Minimum 8 hours continuous alkaline or rechargeable
|
|
Enclosure: High impact polycarbonate ABS blend
|
|
Rating: IP 54
|
|
Approvals: UL 913 Class I, Div 1, Groups C, D
|
|
IECEx: Ex iad IIB T3
|
|
Warranty: 2 years
|
|
GT 40 SERIES SENSOR SPECIFICATIONS
|
|||
|
GAS
|
RANGE
|
INCREMENTS
|
SENSOR TYPE
|
|
02
|
0-25%
|
0.1%
|
Electrochemical
|
|
CO
|
0-2000ppm
|
1ppm
|
Electrochemical
|
|
H2S
|
0-100ppm
|
1ppm
|
Electrochemical
|
|
Dual Tox (CO/H2S)
|
0-2000ppm /0-100ppm
|
1ppm
|
Electrochemical
|
|
CH4
|
0-10,000ppm
|
1ppm
|
MOS
|
|
CH4
|
0-100% LEL
|
1%
|
PELLISTOR
|
|
CH4
|
0-100% Volume
|
1%
|
Thermal Conductivity Sensor
|
|
GT 40 MEASURING RANGES GT 40 MEASURING RANGES
|
|
0 to 10,000 ppm Methane (Semiconductor Sensor)
|
|
0 to 100% LEL Methane
|
|
0 to 100% Volume Gas Methane
|
|
0 to 25% Oxygen (O2)
|
|
0 to 2000 ppm Carbon Monoxide (CO)
|
|
0 to 100 ppm Hydrogen Sulphide (H2S)
|
|
0 to 60 in. (0 to 150 mBar) Water Gauge
|
|
定货号 |
产品名称 |
规格配置 |
|
MM-14385-00 |
GT44可燃气体检测仪 |
主机（含三量程可燃气传感器），可弯曲采样探针，用户手册，手提箱 |
|
MM-14385-98 |
67294充电电池 |
3个/包 |
|
MM-14385-99 |
67134标准充电器 |
|
