Extended flow range: 5 to 5000 ml/min (5 to 500 ml/min with Low Flow Adapter Kit)
Suitable for low flow gas/vapor or high flow particulate sampling
Enhanced battery power for extended run times*
|
XR5000 Model |
2 L/min |
5 L/min |
|
High-power Li-Ion |
40 hrs |
22 hrs |
|
Standard Li-Ion |
20 hrs |
15 hrs |
|
Alkaline |
18 hrs |
8 hr |
*Using a 37-mm 0.8 µm MCE filter
3 interchangeable battery options
High-power Li-Ion for extended runs
Standard Li-Ion for lighter weight
Disposable AA alkaline batteries for fast emergency response
Highly accurate electronic flow control system
Compensates with ± 5% accuracy
Automatic flow correction for changes in temperature provides accurate air volumes
Extremely simple operation
Easy-to-use three-button keypad
Continuous run with the push of a button
Bright blue pump status LED
Easy-to-read LCD displays elapsed time and accumulated run time
Set-and-go timer
Timed and delayed runs up to 9999 minutes
Sample Integrity
Lockable keypad
Automatic flow fault
Auto-restart after 15 seconds in flow fault
Only 16 ounces (standard Li-Ion model)
CE marked
Suitable for use in non-explosive environments only (not UL Listed). Contact SKC for availability of UL Listed models.
Performance Profile
|
Flow Range |
1000 to 5000 ml/min (5 to 500 ml/min requires optional low flow adapter kit) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compensation Range |
5000 ml/min at 10 inches water back pressure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Typical Back Pressure of Sampling Media (inches water)
Compare the information in this table to pump compensation range to determine appropriate applications. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Compensation System |
Patented* isothermal closed loop flow sensor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accuracies |
Timing: 1 min/month at 25 C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Charge Level Indicator |
Icon displays on LCD at full, mid, low charge, imminent low battery fault, and low battery fault. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature Range |
Operating: 32 to 113 F (0 to 45 C) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Timer Display Range |
1 to 9999 minutes (6.8 days). If run time exceeds 6.8 days, timer display rolls over. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Fault |
If pump is unable to compensate for > 15 seconds due to excessive back pressure, the pump stops and holds run time display. Auto-restart is attempted every 15 seconds up to 5 times. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Battery Fault |
15 seconds to sleep |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto-off |
5 minutes of inactivity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Pack |
High-power Li-Ion (4 cell), rechargeable, 7.4 V, 4.8 Ah capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Recharge Time |
Standard Li-Ion (2 cell): approximately 5 hrs |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Size |
High-power Li-Ion and alkaline models: 5.6 x 3 x 2.3 in (14 x 8 x 6 cm) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
High-power Li-Ion: 21 oz (0.6 kg) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Case |
Anti-static plastic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFI/EMI Shielding |
CE marked for RFI/EMI protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AirChek® XR5000 with High-power Li-Ion
|
De |
|
|
Pump with battery*, requires charger, see below |
|
|
Single Pump Kit* includes pump, charger (100-240 V), cassette holder, and soft-side nylon carry case |
|
|
5-pk Hi-flow Pump Kit* includes 5 pumps single chargers (100-240 V), cassette holders, 100-240 V, and 1 carry case |
|
|
5-pk Hi/Low-flow Pump Kit* includes 5 pumps, chargers (100-240 V), cassette holders, adjustable low flow holders, constant pressure controllers, Type A tube covers, and 1 carry case. |
|
|
Replacement battery pack, SKC Li-Ion high-power 4-cell replacement battery pack for AirChek XR5000 pump, non-UL approved for intrinsic safety. |
|
|
Certificate of Compliance, optional (must be ordered when ordering pump) |
* AirChek XR5000 pumps with Li-Ion batteries may be subject to special shipping regulations dependent upon quantity.
AirChek XR5000 with Standard Li-Ion
|
De |
|
|
Pump with battery*, requires charger, see kits or chargers below. |
|
|
Single Pump Kit* includes pump, charger (100-240 V), cassette holder, and soft-side nylon carry case |
|
|
5-pk Hi-flow Pump Kit* includes 5 pumps, single chargers (100-240 V), and cassette holders and 1 carry case |
|
|
5-pk Hi/Low-flow Pump Kit* includes 5 pumps, chargers (100-240 V), cassette holders, adjustable low flow holders, constant pressure controllers, Type A tube covers and 1 carry case |
|
|
Replacement battery pack, SKC Li-Ion standard 2-cell replacement battery pack for AirChek XR5000 pump, non-UL approved for intrinsic safety |
|
|
Certificate of Compliance, optional (must be ordered when ordering pump) |
* AirChek XR5000 pumps with Li-Ion batteries may be subject to special shipping regulations dependent upon quantity.
AirChek XR5000 with Alkaline
|
De |
|
|
Pump with 6 AA size batteries |
|
|
5-pk Hi-flow Pump Kit includes 5 pumps and cassette holders and 1 carry case |
|
|
5-pk Hi/Low Flow Pump Kit includes 5 pumps, cassette holders, adjustable low flow tube holders, constant pressure controllers, and Type A tube covers and 1 carry case |
|
|
Replacement battery pack, SKC alkaline 6-cell (size AA) replacement battery pack for AirChek XR5000 pump, non-UL approved for intrinsic safety. |
|
|
Certificate of Compliance, optional (must be ordered when ordering pump) |
AirChek XR5000 without Battery Pack
|
De |
. |
|
Pump without battery pack, attach this pump to an XR5000 high-power Li-Ion pack P75690, standard Li-Ion pack P75716, or alkaline pack P75715. |
|
|
Certificate of Compliance, optional (must be ordered when ordering pump) |
AirChek XR5000 Accessories
|
Accessories |
|
|
Single Charger for high-power and standard Li-Ion pumps 100-240 V |
|
|
Low Flow Adapter Kit (5 to 500 ml/min) includes constant pressure controller (CPC), single adjustable low flow holder, and Type A tube cover. Suitable for all XR5000 models |
|
|
Protective Pouches, nylon, with belt, adjustable waist, and shoulder strap |
|
|
Black, suitable for high-power Li-Ion and alkaline XR5000 models |
|
|
High-profile red, suitable for high-power Li-Ion and alkaline XR5000 models |
|
|
Black, noise-reducing, suitable for high-power Li-Ion and alkaline XR5000 models |

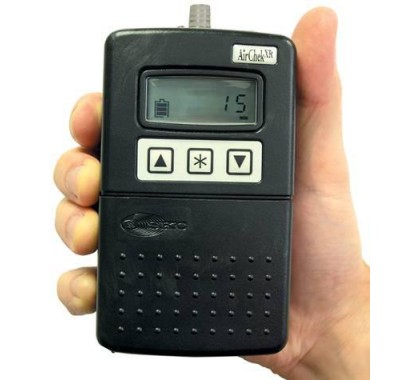

微電腦高低流量空氣採樣器 NEW!
型號：AirChek XR5000
· 流量範圍：5~5000毫升/分鐘。(5~500ml/min 需加裝低流量套件)
· 背壓補償：0~65英吋水柱(65英吋@2公升，30英吋@4公升)
· 流量精準度：校正後±3%
· 運轉時間：流量2公升/分鐘，65英吋水柱背壓下，可運轉10小時以上
· 重量：454公克，尺寸：10×8×6公分
· 內置流量感測器，具專利先進流量電子控制技術維持設定流率，當壓力、溫度改變時，自動修正採樣體積
· 液晶螢幕直讀流量、背壓、體積、溫度、時間、電池電量、流量狀況等資訊
· 流量錯誤達±5%自動停機，保留採樣時間，並每5秒鐘自行再啟動，可達10次
· 可由按鍵程式化設定採樣時程或延時採樣時間
· RFI/EMI防撞抗無線電波與電磁波干擾外殼
UL與cUL本質安全認證
